Arctic TP-4

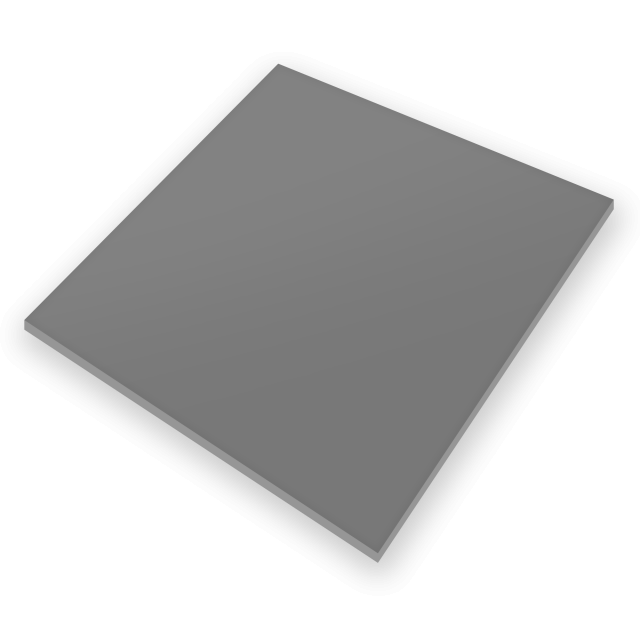

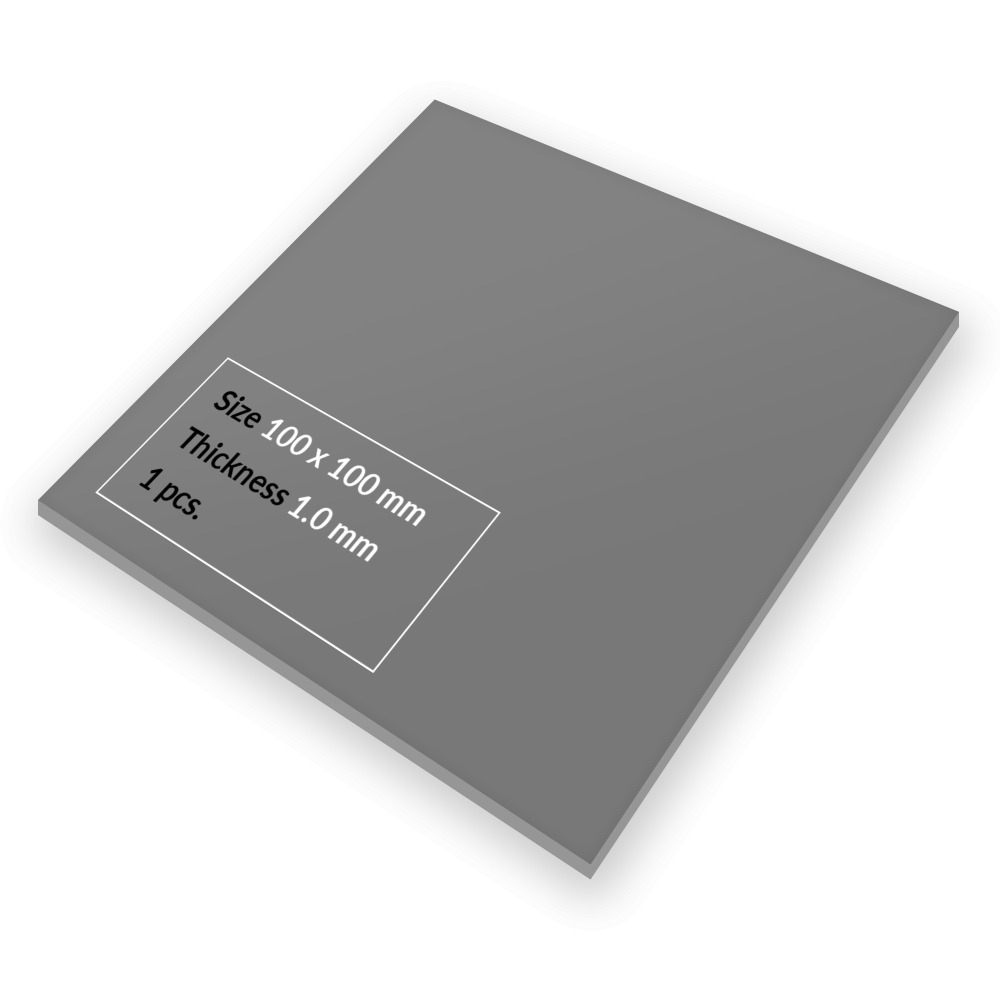

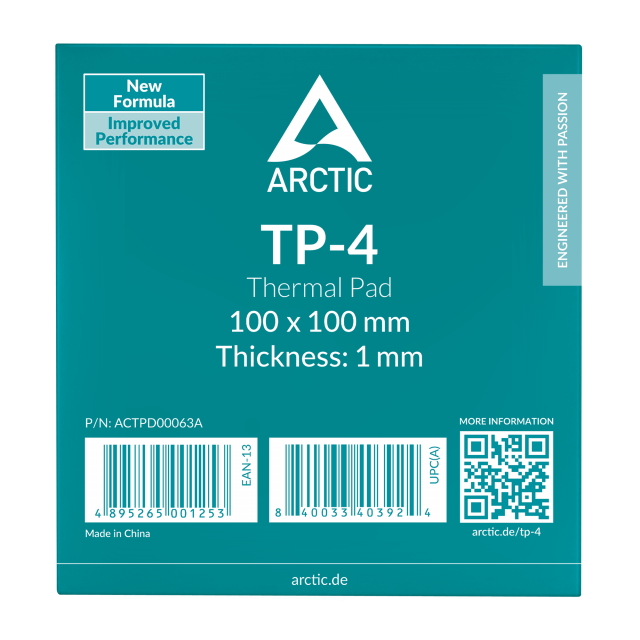

Термопроводящ пад ARCTIC TP-4 - 100x100x1 mm, 1 брой
Арт. номер: ARCTIC-ACTPD00063A
безплатна доставка
на поръчки над 100 EUR
Технически характеристики
| Гаранция | 72 месеца |
| Вид | Термо подложка |
| Дебелина | 1 мм |
Свързани продукти
High Performance — Extremely Soft
The silicone-based TP-4 combines high thermal conductivity with extremely low hardness and reliably compensates for manufacturing tolerances between chips.
Safe Application
Electrically insulating, non-adhesive, and easy to handle — for safe and reliable heat transfer.

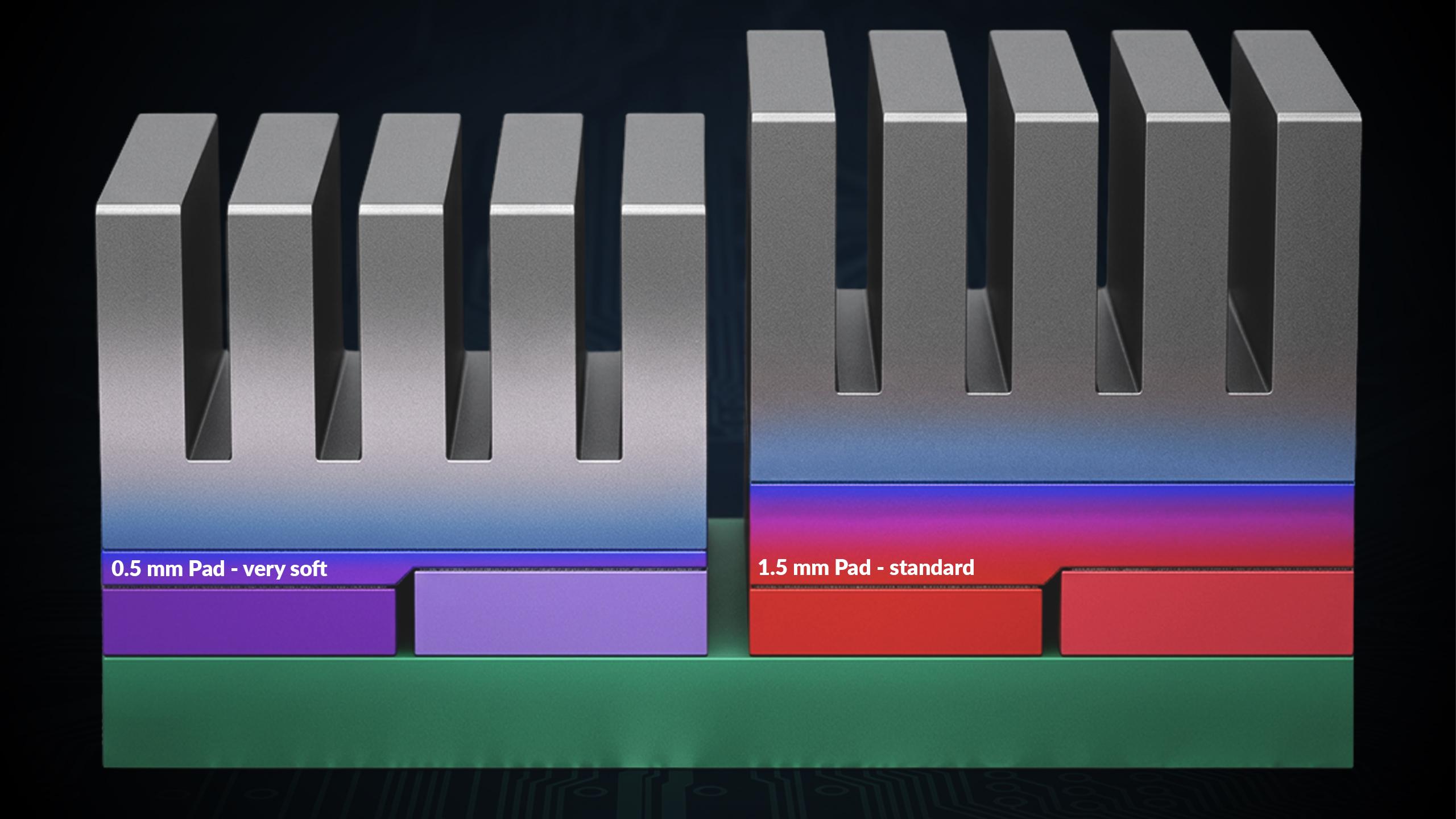

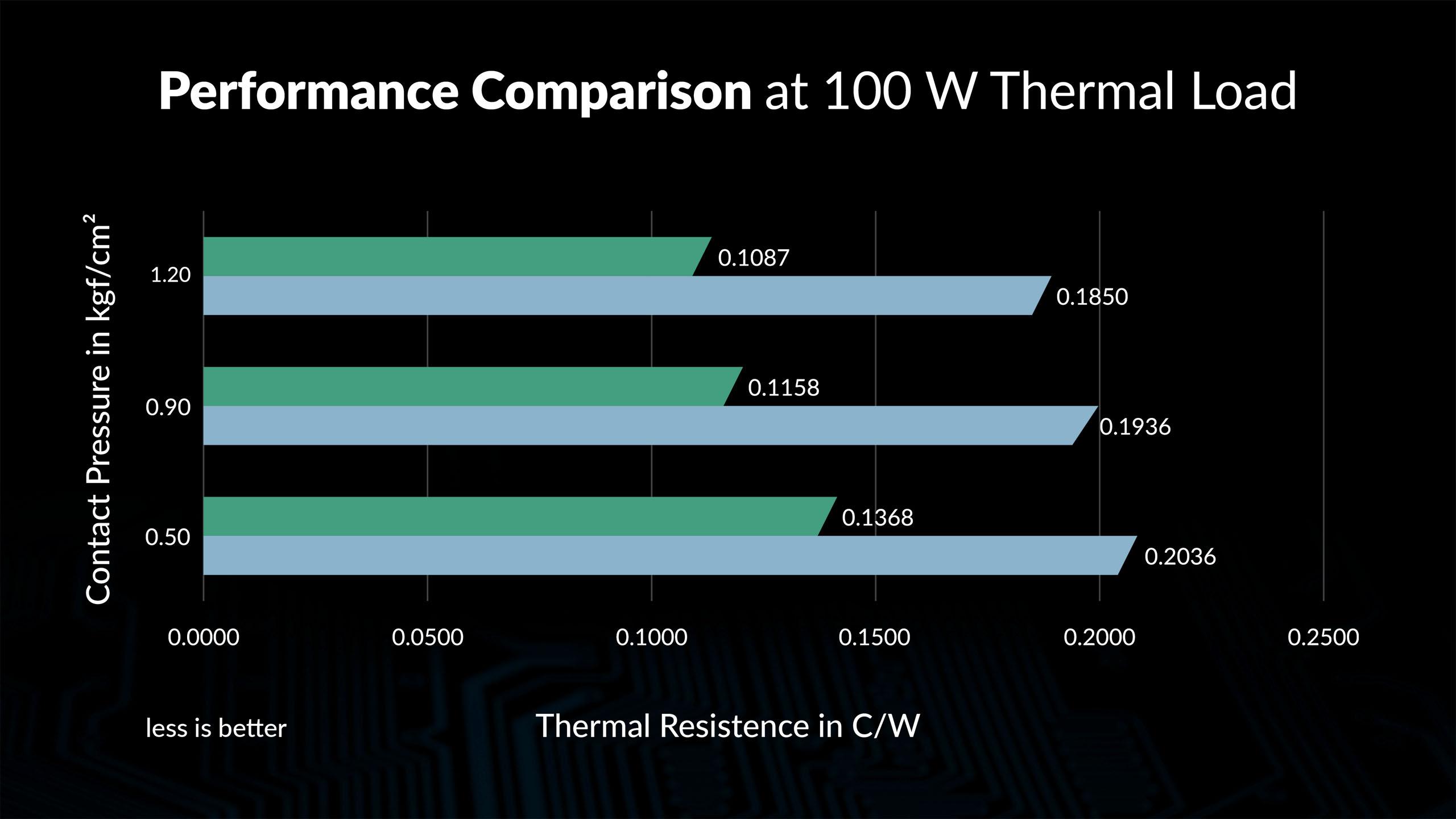

Minimizing Thermal Resistance
The thinner the pad, the lower the thermal resistance. Depending on mounting pressure, the TP-4 can be compressed to up to 60% of its original thickness.

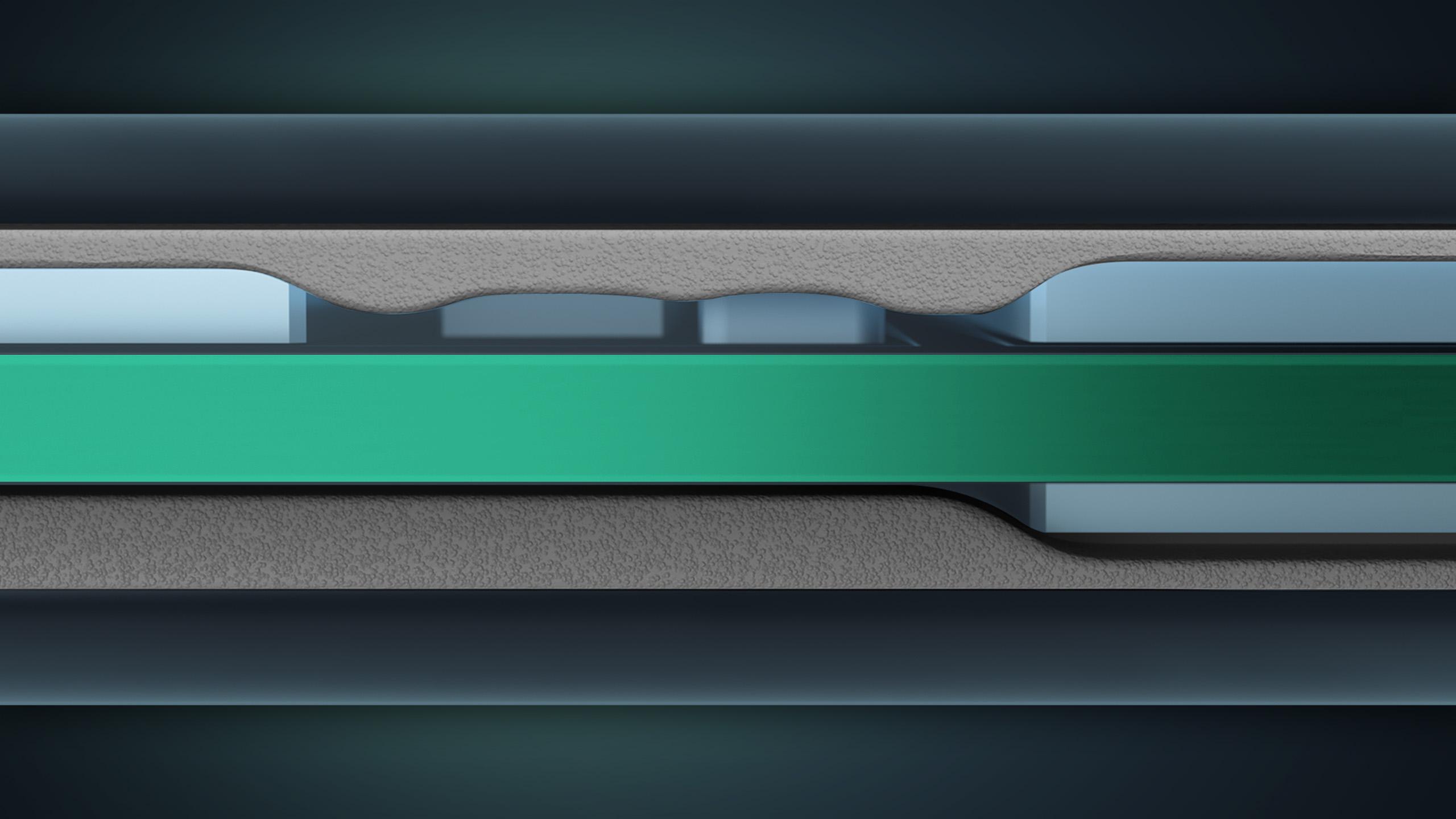

Bridging Uneven Surfaces
Adapts optimally to varying chip heights, air gaps, and uneven surfaces to ensure reliable contact.

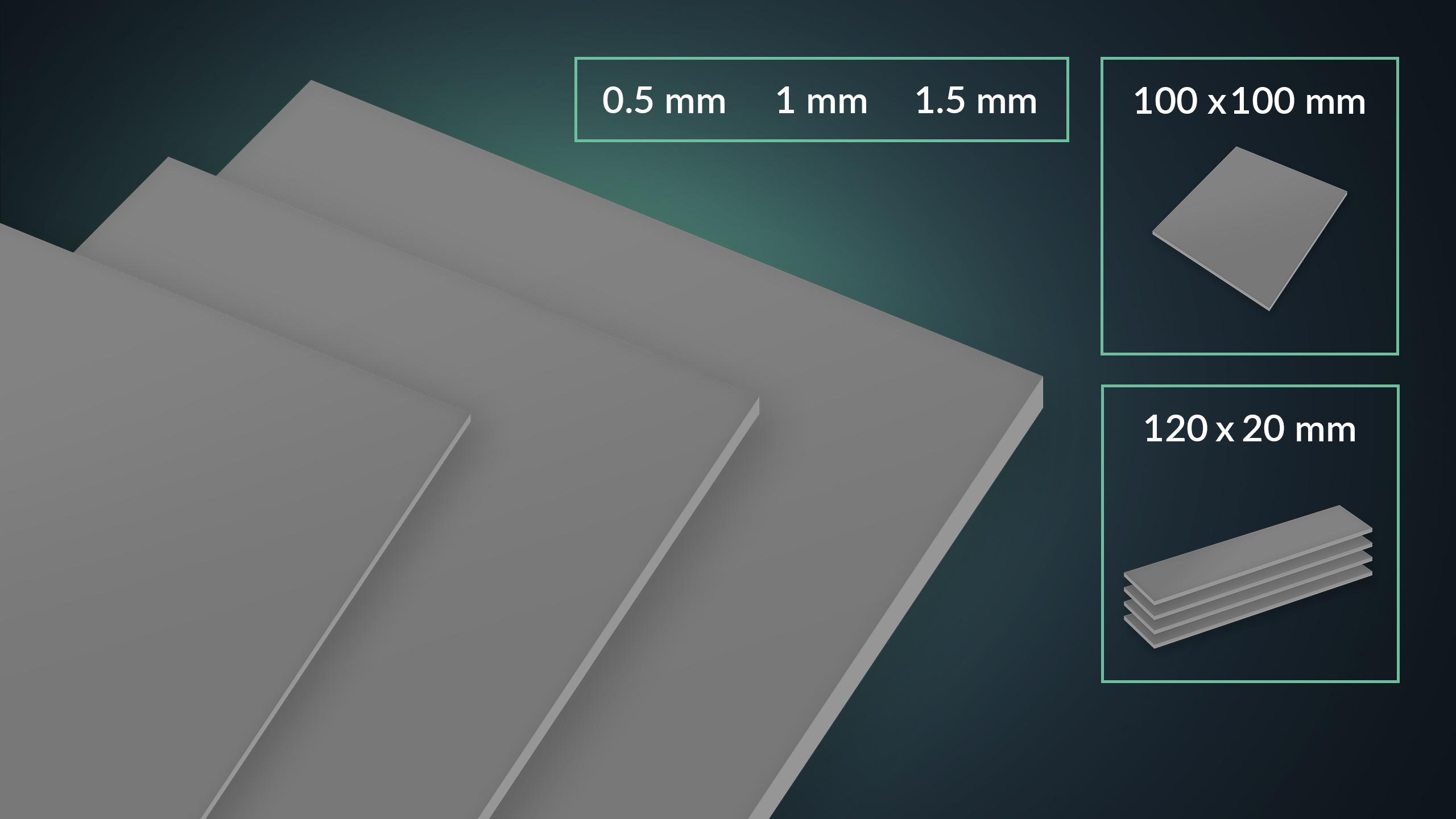

Available in Various Thicknesses and Sizes

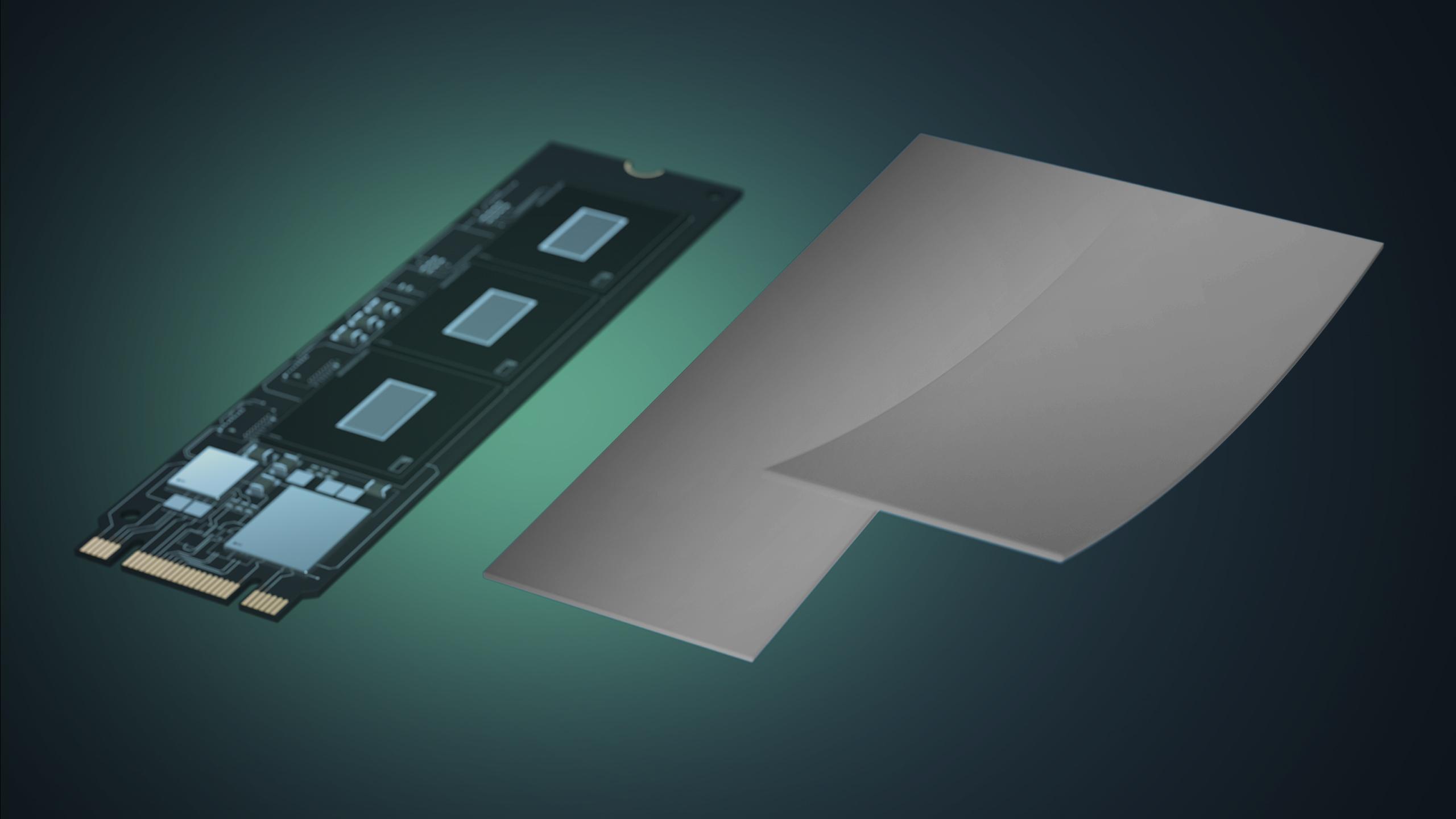

Available in 0.5 mm, 1.0 mm, and 1.5 mm thicknesses as well as multiple sizes. Can be individually cut to size if needed.

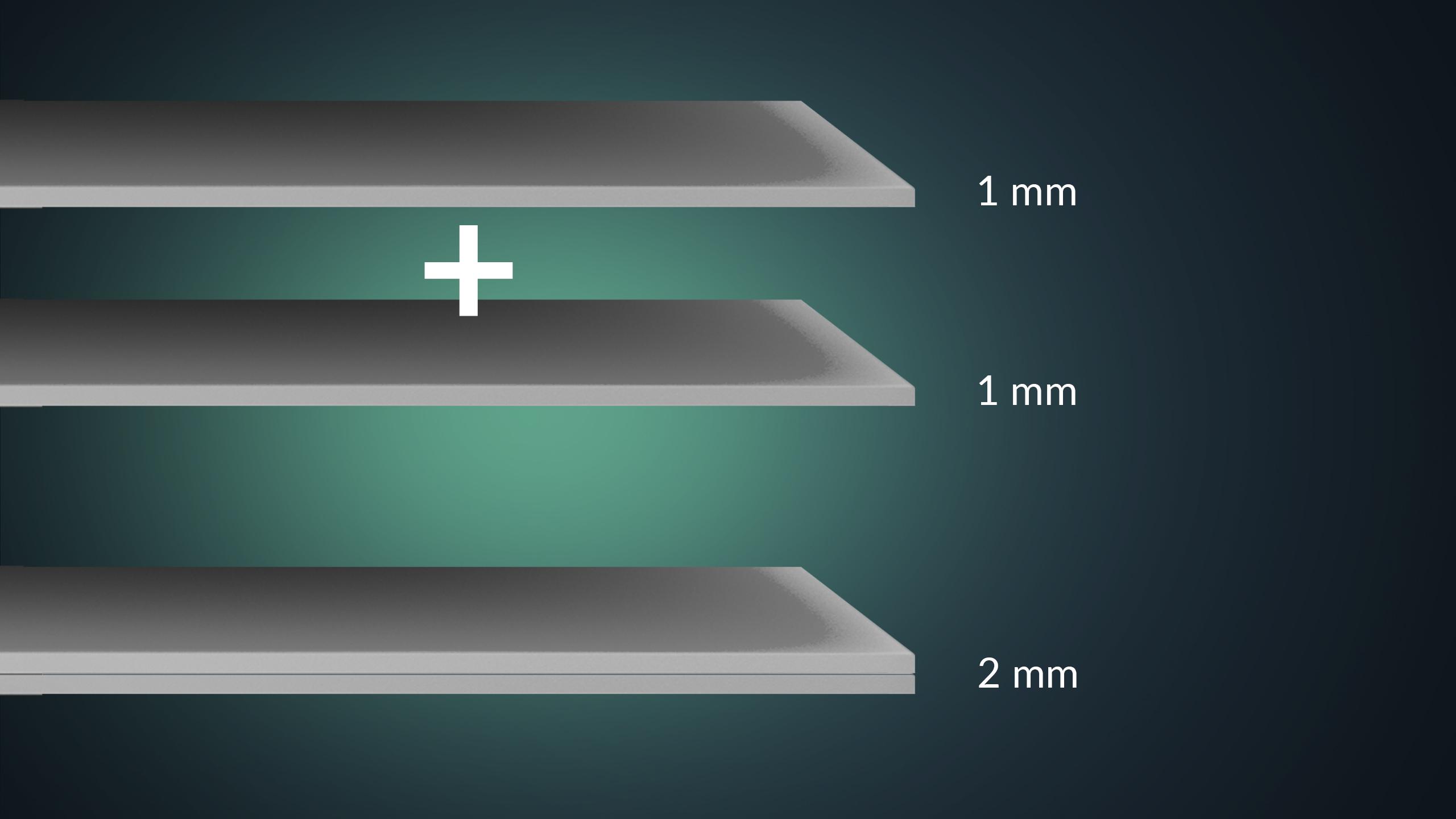

Stackable Without Performance Loss
Thanks to its low hardness and low interface resistance, multiple pads can be combined without affecting thermal transfer performance.
Specifications
| General Specifications | |||
| Operating Ambient Temperature | -40-200 °C | Dimensions | 100 (L) x 100 (W) x 1 (H) mm |
| Thermal Pad Specifications | |||
| Hardness | 50 Shore OO | Dielectric Constant | 7.2 @1 MHz |
| Specific Gravity | 3.4 g/cm³ | Volume Resistance | 1.52 x 10^13 Ω-cm |
| Breakdown Voltage | 8620 V/mil | Flammability Rating | UL 94 V-0 |
