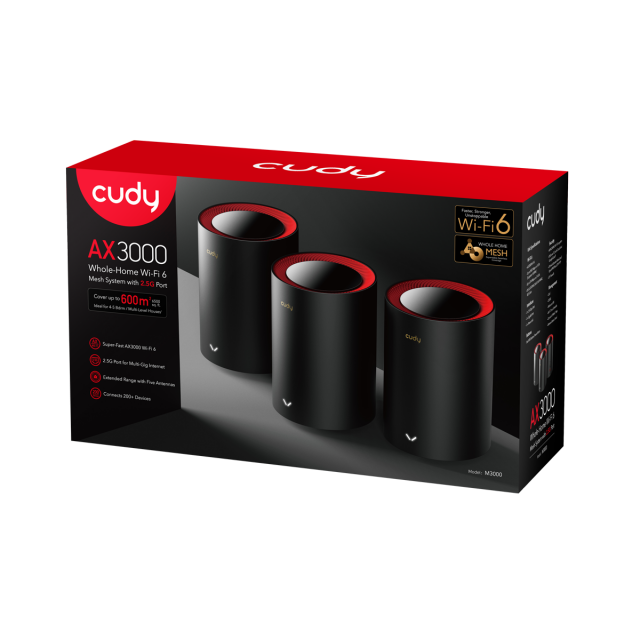

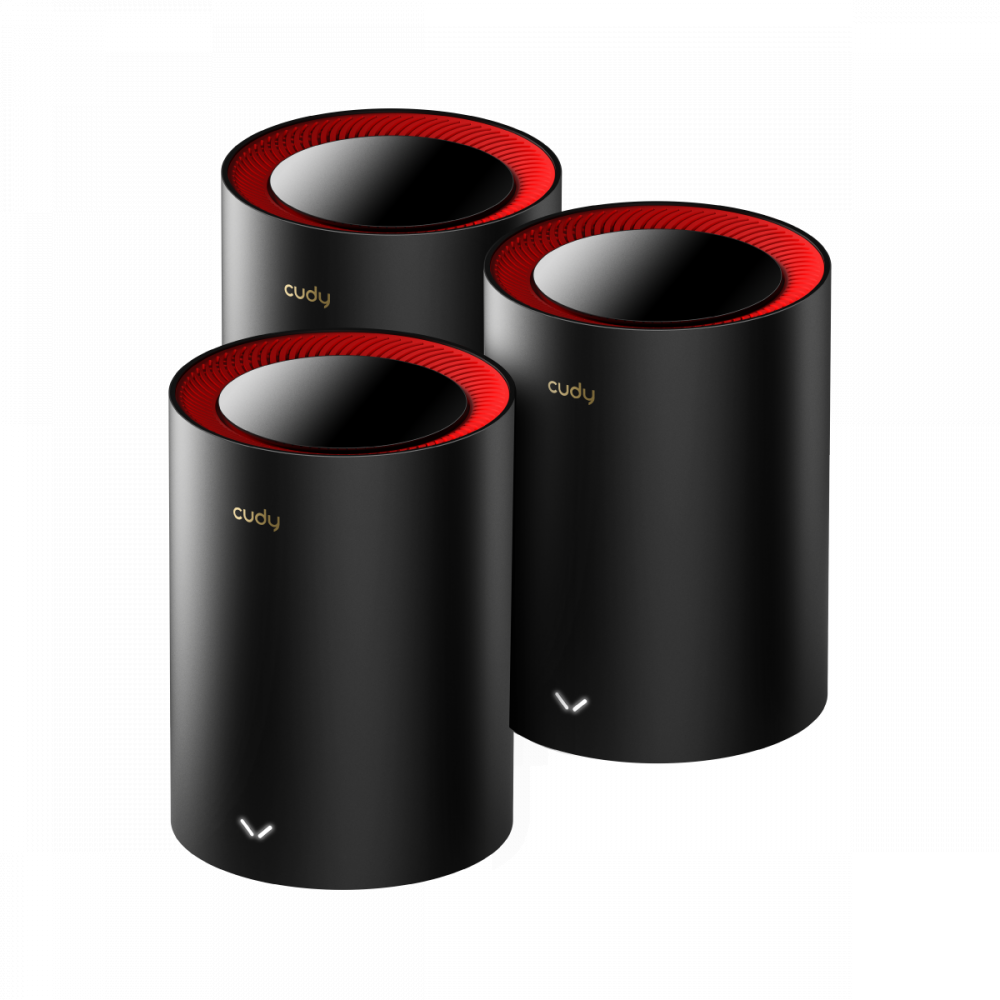

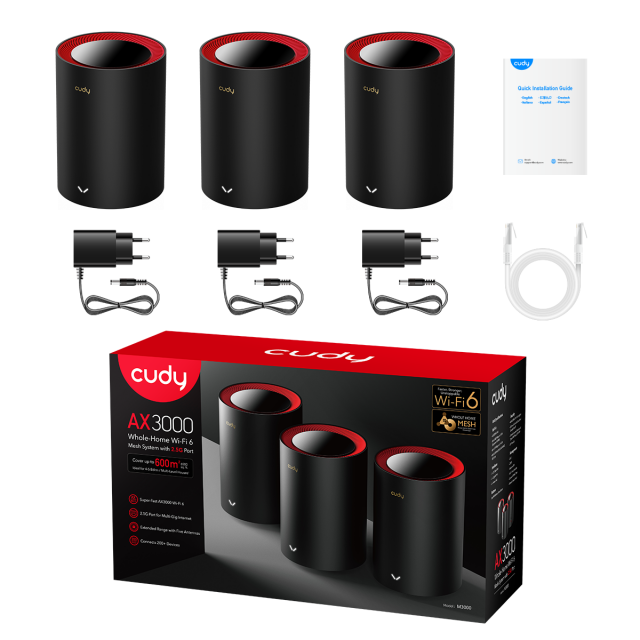

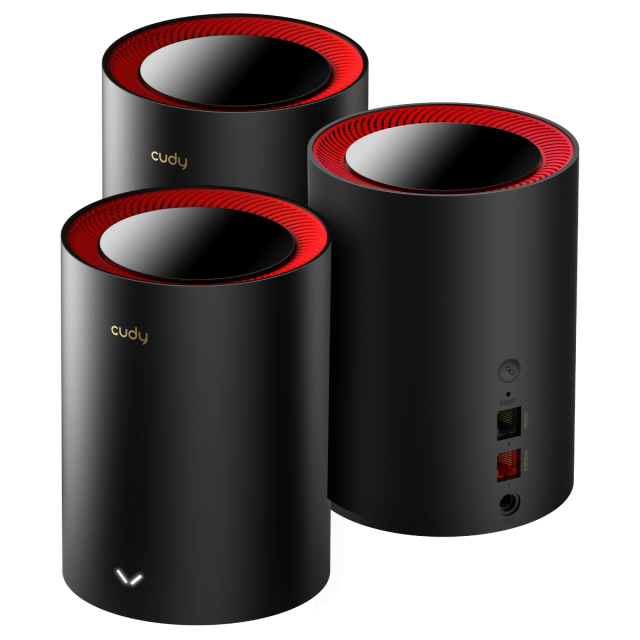

Cudy M3000 (3-Pack)
Безжична MESH система Cudy M3000, 3 броя, AX3000 Dual Band, 2.4/5 GHz, 574 - 2402 Mbps
Арт. номер: CUDY-ROUT-M3000-3-BL
Запитване за Cudy M3000 (3-Pack)
безплатна доставка
на поръчки над 100 EUR
Технически характеристики
| Гаранция | 24 месеца |
| Тип | Mesh система |
| WI-FI Стандарт | AX3000 |
| Скорост на трансфер (Wi-Fi) | до 2976 Mbps |
| Скорост на трансфер (LAN) | 1 Gbps, 2.5 Gbps |
| LAN портове | 1 бр. |
| USB Порт | Не |
Свързани продукти
Тип:
Mesh система
WI-FI Стандарт:
AX3000
Скорост на трансфер (Wi-Fi):
до 2976 Mbps
Скорост на трансфер (LAN):
1 Gbps, 2.5 Gbps
LAN портове:
1 бр.
Тип:
Mesh система
WI-FI Стандарт:
BE11000
Скорост на трансфер (Wi-Fi):
до 10777 Mbps
Скорост на трансфер (LAN):
2.5 Gbps
LAN портове:
3 бр.
Тип:
Мобилен рутер
WI-FI Стандарт:
AC1200, LTE, 4G
Скорост на трансфер (Wi-Fi):
до 1667 Mbps
Скорост на трансфер (LAN):
1 Gbps
LAN портове:
4 бр.
Тип:
Рутер
WI-FI Стандарт:
BE11000
Скорост на трансфер (Wi-Fi):
до 10777 Mbps
Скорост на трансфер (LAN):
2.5 Gbps
LAN портове:
3 бр.
Тип:
Mesh система
WI-FI Стандарт:
BE3600
Скорост на трансфер (Wi-Fi):
до 3570 Mbps
Скорост на трансфер (LAN):
1 Gbps
LAN портове:
2 бр.
Тип:
Mesh система
WI-FI Стандарт:
BE3600
Скорост на трансфер (Wi-Fi):
до 3570 Mbps
Скорост на трансфер (LAN):
1 Gbps
LAN портове:
2 бр.
Тип:
Mesh система
WI-FI Стандарт:
AC1200
Скорост на трансфер (Wi-Fi):
до 1167 Mbps
Скорост на трансфер (LAN):
1 Gbps
LAN портове:
1 бр.
Тип:
Mesh система
WI-FI Стандарт:
AX3000
Скорост на трансфер (Wi-Fi):
до 2976 Mbps
Скорост на трансфер (LAN):
1 Gbps, 2.5 Gbps
LAN портове:
1 бр.
Тип:
Mesh система
WI-FI Стандарт:
AX3000
Скорост на трансфер (Wi-Fi):
до 2976 Mbps
Скорост на трансфер (LAN):
1 Gbps, 2.5 Gbps
LAN портове:
1 бр.
Тип:
PoE Суич
Скорост на трансфер (LAN):
1 Gbps
LAN портове:
24 бр.
SFP портове:
1x SFP
Тип:
Access Point
WI-FI Стандарт:
AX3000
Скорост на трансфер (Wi-Fi):
до 2976 Mbps
Скорост на трансфер (LAN):
2.5 Gbps
LAN портове:
1 бр.
No-Buffer 4K Streaming. Responsive FPS
Gaming.
Enjoy super-responsive gaming and video playback
with the top-notch 160 MHz bandwidth and high RAM.
Families, Friends, IoT, All Onboard.
Powerful CPU, DL/UL OFDMA, and MU-MIMO reduce latency
while connecting hundreds of devices.
Easy to Use, Versatile Functions
Control Online Time & Content
Regulate your kids' online activities by setting an online time duration for their devices and banning inappropriate web domains.
Secure Personal Network
WPA3 protects your wireless from brute-force attacks. Guest Network separates your own devices and guests' devices to improve security.
VPN Server and Client
Six built-in protocols provide compatibility with 50+ commercial VPN providers and enable you to host your own VPN server.
Know Your Network
The system panel provides intuitive information for you to know network status. Built-in diag-tool helps locate problems and troubleshooting easier.
Cudy App
Manage your network from your phone. This model supports
cloud remote control and local control via the Cudy App.
Specifications
Hardware Specs
| CPU | CPU Details | 1.3 GHz Dual-Core, ARM Cortex-A53 |
| Memory/Storage | Flash/ROM | 128 MB (1 Gbit) NAND |
| DDR/RAM | 256 MB (2 Gbit) DDR3 | |
| Wireless | 5 GHz Wi-Fi Speed | 2402 Mbps |
| 2.4 GHz Wi-Fi Speed | 574 Mbps | |
| 5 GHz Wi-Fi Streams | 2 Spatial Streams with 3T3R | |
| 2.4 GHz Wi-Fi Streams | 2 Spatial Streams | |
| Wi-Fi Antennas | 5× Internal | |
| FEM or PA/LNA | 5 GHz: 3× Internal 2.4 GHz: 2× Internal |
|
| Beamforming | Yes | |
| Range Performance | Max: 220 m (722 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. |
|
| Wall Performance | Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'') |
|

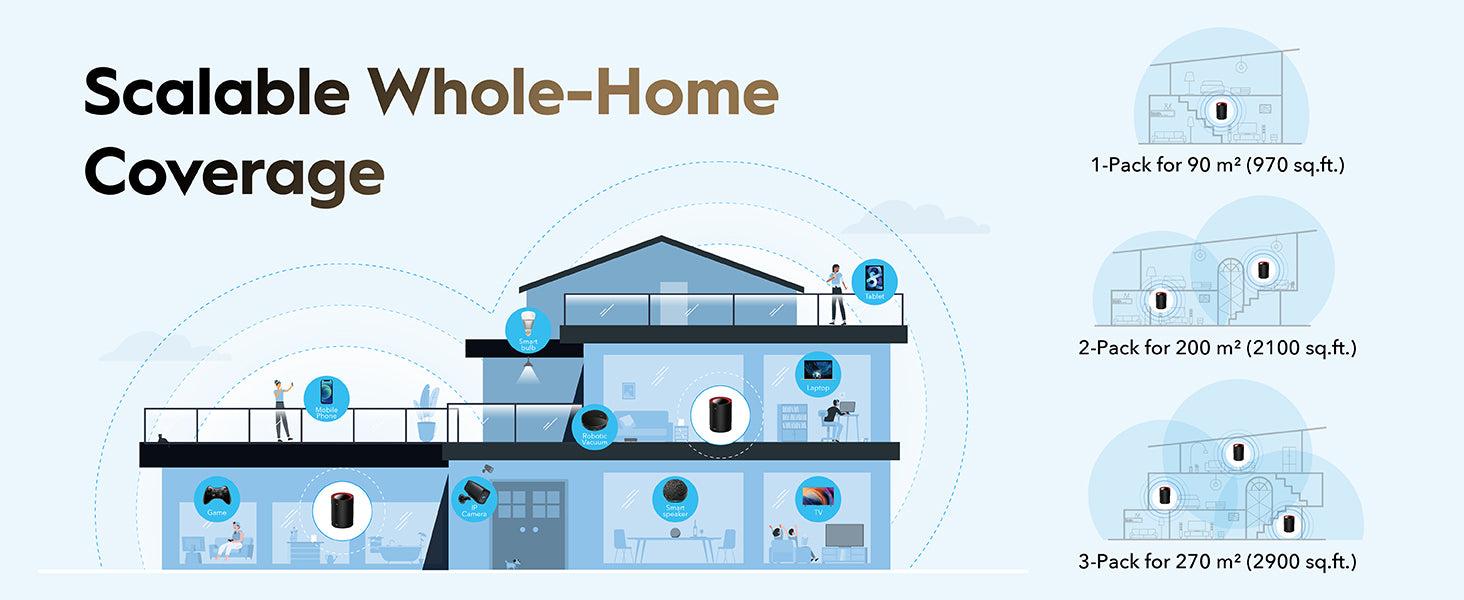

| Indoor Coverage Reference | 2 Pack: 200 m² (2100 sq ft) 3 Pack: 270 m² (2900 sq ft) Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room. |
|
| Interfaces | 2.5G RJ45 Ports | 1 |
| Gigabit RJ45 Ports | 1 | |
| Ethernet Notes | The 2.5G port is the WAN port, the Gigabit port is LAN port | |
| LED | System Speed/Link/ACT of Ethernet Port |
|
| Physical Buttons | WPS Button Reset Button |
|
| Power | Power Input Type | DC Jack |
| Power Methods | DC | |
| Power Input | 12V⎓1A | |
| Power Adapter In the Box | Input: 100-240V~, 50/60Hz Output: 12V⎓1A |
|
| Max Power Consumption (W) | 11.5W | |
| Idle Power Consumption (W) | 4.2W | |
| Reliability | Environment | Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing |
| Certifications | FCC, CE | |
| Mechanical | Installation | Desktop |
| Dimension | Φ110×154.5 mm Φ4.33×6.08 inches |
|
| Product Weight | 360 g (12.7 oz.) | |
| Power | Power Output | 4.2W |
Software Specs
| Wireless | Wi-Fi Standards | Wi-Fi 6 |
| Max Wi-Fi Modulation | 1024-QAM | |
| Wi-Fi Efficiency | OFDMA MU-MIMO BSS Color |
|
| Max Capacity | 512 | |
| Recommended Client Upper Limit | 200 | |
| Wi-Fi Channel Width | Auto/20/40/80/160 MHz | |
| Wi-Fi Security | WPA/WPA2/WPA3 | |
| Guest Network | 2.4 GHz, 5 GHz | |
| WPS | Yes | |
| General | Operation Modes | Wi-Fi Router Access Point Range Extender WISP Client |
| Mesh | Cudy Mesh | |
| Mesh Backhaul | Wireless Backhaul Wired Backhaul |
|
| Multi-Band Backhaul | Yes | |
| WAN Mode | DHCP Static IP PPPOE PPTP L2TP |
|
| Network | QoS | Per-User Rate Limiting Guest Network Rate LImiting |
| DHCP | Address Reservation DHCP Client List Server |
|
| IP Versions | IPv4/IPv6 | |
| IPv6 Protocols | Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite |
|
| Multicast | Yes | |
| IPTV/VLAN | Bridge Tag VLAN VoIP VLAN IPTV VLAN |
|
| TTL Customization | Extend Spoof Custom |
|
| IGMP | IGMP Proxy IGMP Snooping |
|
| Forwarding | Port Forwarding Port Triggering UPnP DMZ |
|
| Firewall | SPI Firewall DoS Protection Block PING |
|
| Application Layer Gateway | IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough |
|
| Utilities | VPN Server | WireGuard OpenVPN IPsec Zerotier PPTP L2TP |
| VPN Client | WireGuard OpenVPN IPsec Zerotier PPTP L2TP |
|
| DNS Options | DNS over TLS Manual DNS Rebind Protection Override Clients' DNS |
|
| DNS over TLS Providers | Cloudflare Quad9 Custom |
|
| Wake on LAN | Yes | |
| Online Detection | Yes | |
| Management | Parental Controls | Profiles Settings Offline Time Online Time Pause the Internet Web Filter |
| All Devices Management | Wi-Fi Time Schedule MAC Filter IP/MAC Binding |
|
| Per-Devices Management | Internet On/Off VPN On/Off Online Time Schedule Device Rename |
|
| Content Management | Domain Filter IP Filter |
|
| System | LED Control | Yes |
| Local Control Method | Config Web Page App Control |
|
| Remote Control Method | Config Page via HTTPS App Control TR069/TR098/TR111/TR143/TR181 |
|
| Firmware Upgrade | Local Update App (Over the Air) Online Update |
|
| Reliability | Timed Reboot Backup and Restore |
|
| Diagnostic Tools | Diagnosis Ping Traceroute NSLookup System Log |
|
| Languages | English Bengali Catalan Czech German Greek Spanish French Hebrew Croatian Hungarian Italian Japanese Khmer Korean Dutch Norwegian Polish Portuguese Romanian Russian Slovak Swedish Thai Turkish Ukrainian Vietnamese Simplified Chinese Traditional Chinese |
|
| Dashboard | Panel | Internet Status Mesh Status Devices Management WAN Status LAN Status WISP Status Wi-Fi Status VPN Status DHCP Server Status System Version |
| Charts | Mesh Topology Internet Speed WISP Speed Wi-Fi Speed |
